N2 Calculation Spreadsheets: Worksheet for calculating the diameter of compressed air pipes

Worksheet for calculating the diameter of compressed air pipes

Worksheet approximates diameter for compressed air pipes.

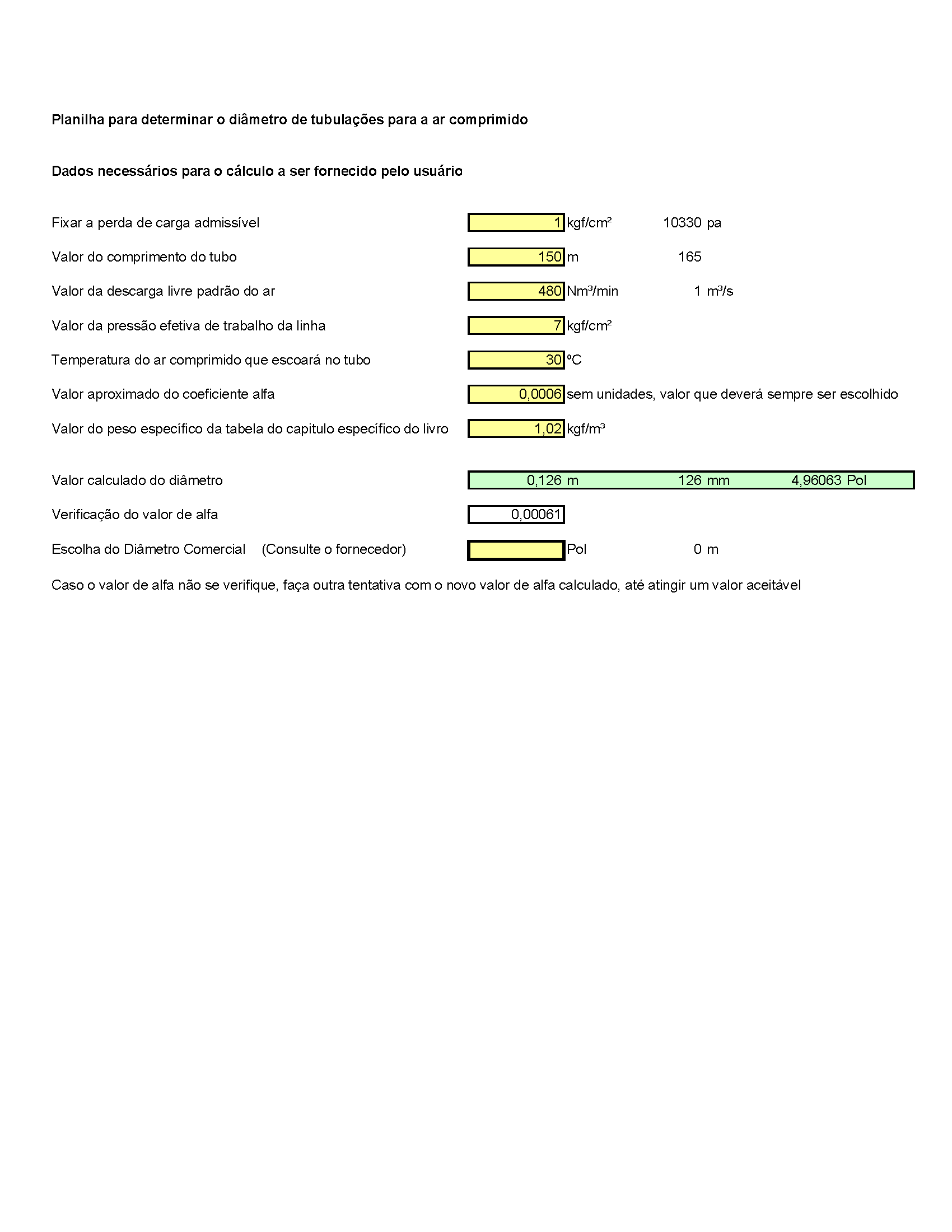

The worksheet considers the following input variables:

permissible load loss
Tube length value
Standard free air discharge value
Effective line working pressure value
Temperature of the compressed air that will flow in the tube
Approximate value of alpha coefficient
Air specific weight value

Compressed air pipe diameter calculation, calculate compressed air
