Name:
Helical Thread Plate Planning
Description:
Spreadsheet calculates sheet flatness for helical thread fabrication.
Input data:
-Step
-Larger Diameter
-Minor Diameter
-Crest height
Output Data:
-Larger Diameter Development
-Larger Diameter Development
-step height
-Smallest radius for development
-Greater radius for development
-Perimeter of the major radius developed
-Perimeter of the smallest radius developed
-Opening Development
-opening angle
-opening rope
Input data:
-Step
-Larger Diameter
-Minor Diameter
-Crest height
Output Data:
-Larger Diameter Development
-Larger Diameter Development
-step height
-Smallest radius for development
-Greater radius for development
-Perimeter of the major radius developed
-Perimeter of the smallest radius developed
-Opening Development
-opening angle
-opening rope

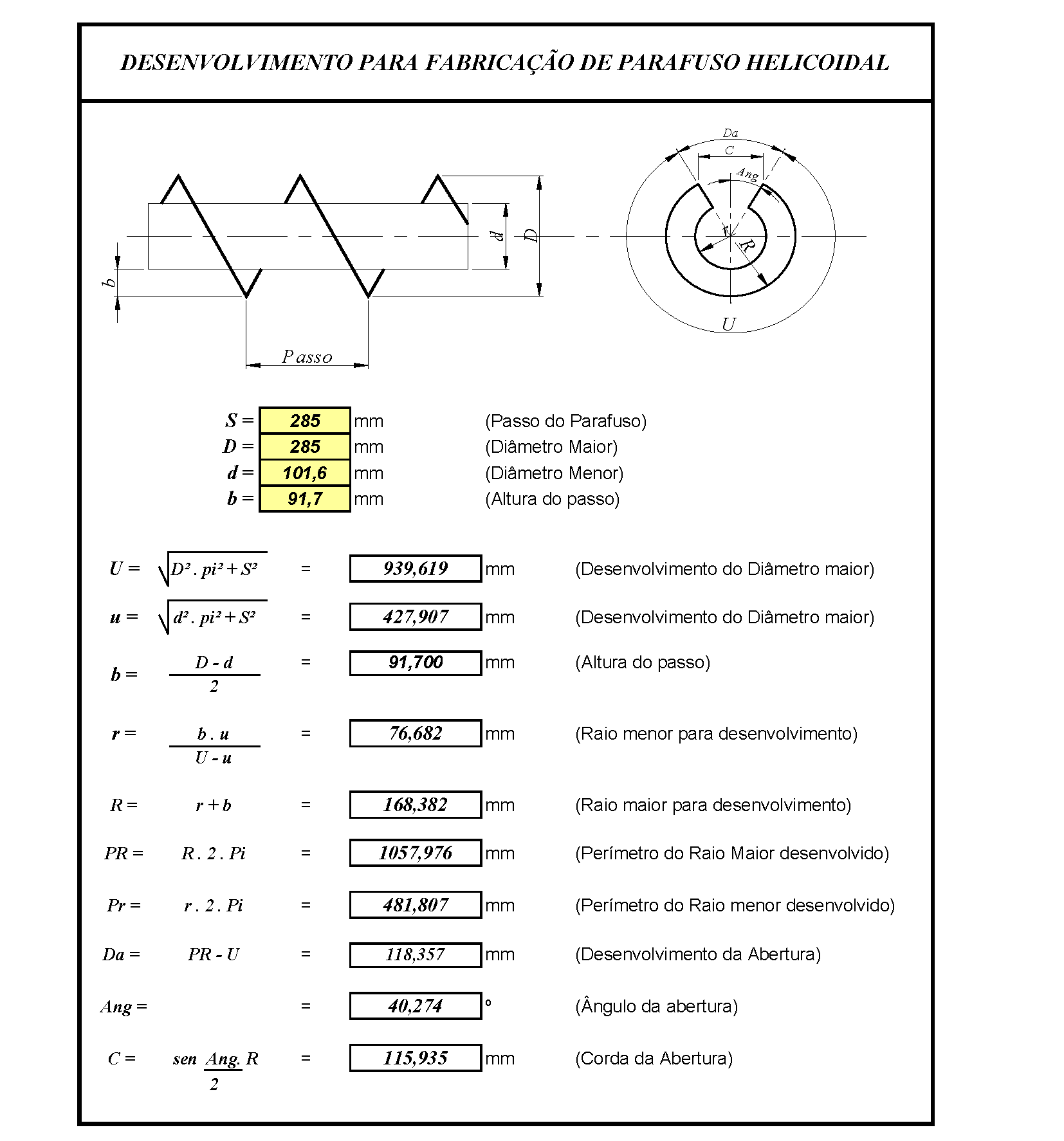

Spreadsheet View:
Tags:
HR Planning, Helical Thread, Helicoid calculus, helical thread development
