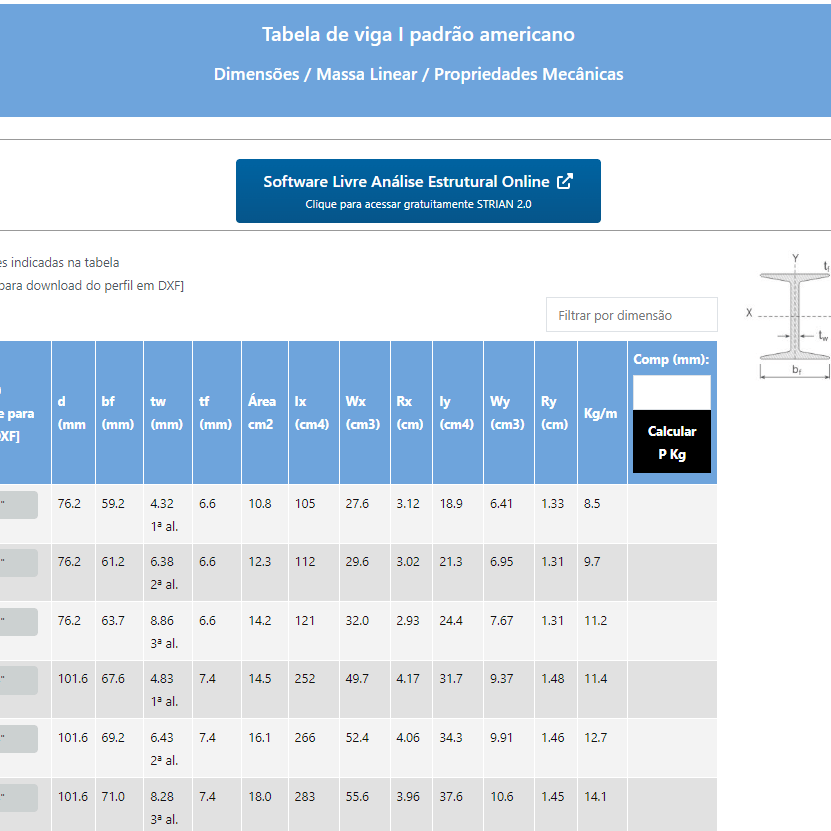

American Standard I-Beam Table

Dimensions / Massa Linear / Mechanical properties

Click beam size to download profile in DXF / DWG

Autolisp application for AutoCAD FPCAD

Click to learn about the tools for your project!

Free Online Structural Analysis Software

Click to access STRIAN for free 2.0

Units indicated in the table
[Click to download profile in DXF]

d (pol) [Click to CAD DXF]	d (mm	bf (mm)	tw (mm)	tf (mm)	Area cm2	Ix (cm4)	Wx (cm3)	Rx (cm)	Iy (cm4)	Wy (cm3)	Ry (cm)	Kg/m	Comp (mm):
3"	76.2	59.2	4.32 1ª al.	6.6	10.8	105	27.6	3.12	18.9	6.41	1.33	8.5
3"	76.2	61.2	6.38 2ª al.	6.6	12.3	112	29.6	3.02	21.3	6.95	1.31	9.7
3"	76.2	63.7	8.86 3ª al.	6.6	14.2	121	32.0	2.93	24.4	7.67	1.31	11.2
4"	101.6	67.6	4.83 1ª al.	7.4	14.5	252	49.7	4.17	31.7	9.37	1.48	11.4
4"	101.6	69.2	6.43 2ª al.	7.4	16.1	266	52.4	4.06	34.3	9.91	1.46	12.7
4"	101.6	71.0	8.28 3ª al.	7.4	18.0	283	55.6	3.96	37.6	10.6	1.45	14.1
4"	101.6	72.9	10.16 4ª al.	7.4	19.9	299	58.9	3.87	41.2	11.3	1.44	15.6
5"	127.0	76.2	5.33 1ª al.	8.3	18.8	511	80.4	5.21	50.2	13.2	1.63	14.8
5"	127.0	79.7	8.81 2ª al.	8.3	23.2	570	89.8	4.95	58.6	14.7	1.59	18.2
5"	127.0	83.4	12.55 3ª al.	8.3	28.0	634	99.8	4.76	69.1	16.6	1.57	22.0
6"	152.4	84.6	5.84 1ª al.	9.1	23.6	919	120.6	6.24	75.7	17.9	1.79	18.5
6"	152.4	87.5	8.71 2ª al.	9.1	28.0	1003	131.7	5.99	84.9	19.4	1.74	22.0
6"	152.4	90.6	11.81 3ª al.	9.1	32.7	1095	143.7	5.79	96.2	21.2	1.72	25.7
8"	203.2	101.6	6.86 1ª al.	10.8	34.8	2400	236.0	8.30	155.1	30.5	2.11	27.3
8"	203.2	103.6	8.86 2ª al.	10.8	38.9	2540	250.0	8.08	165.9	32.0	2.07	30.5
8"	203.2	105.9	11.20 3ª al.	10.8	43.7	2700	266.0	7.86	179.4	33.9	2.03	34.3
8"	203.2	108.3	13.51 4ª al.	10.8	48.3	2860	282.0	7.69	194.0	35.8	2.00	38.0
10"	254.0	118.4	7.90 1ª al.	12.5	48.1	5140	405.0	10.30	282	47.7	2.42	37.7
10"	254.0	121.8	11.40 2ª al.	12.5	56.9	5610	442.0	9.93	312	51.3	2.34	44.7
10"	254.0	125.6	15.10 3ª al.	12.5	66.4	6120	482.0	9.60	348	55.4	2.29	52.1
10"	254.0	129.3	18.80 4ª al.	12.5	75.9	6630	522.0	9.35	389	60.1	2.26	59.6
12"	304.8	133.4	11.70 1ª al.	16.7	77.3	11330	743.0	12.10	563	84.5	2.70	60.6
12"	304.8	136.0	14.40 2ª al.	16.7	85.4	11960	785.0	11.80	603	88.7	2.66	67.0
12"	304.8	139.1	17.40 3ª al.	16.7	94.8	12690	833.0	11.60	654	94.0	2.63	74.4
12"	304.8	142.2	20.60 4ª al.	16.7	104.3	13430	881.0	11.30	709	99.7	2.61	81.9
