Tableau des tubes SCH - NBR 5590
SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 / SCH XXS
Cliquez sur la taille du faisceau pour télécharger le profil au format DXF / DWG
Attendez que la page se charge pour libérer les fonctions de calcul pour:
-Poids total du profil pour la longueur saisie dans (Kg)
-Surface totale du profil pour la longueur saisie dans (cm2)
[Cliquez pour télécharger le profil en DXF]

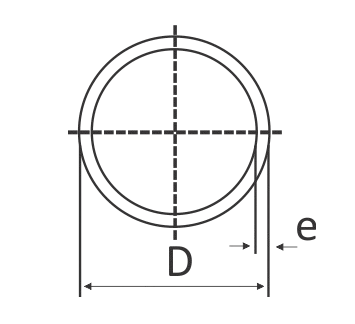

| Norma [Cliquez pour CAO DXF] | Diamètre Pol nominale. | Diamètre Externe (mm) | Diamètre Interne (mm) | Mur (mm) | Poids (Kg/m) | Périmètre (mm) | ||
|---|---|---|---|---|---|---|---|---|
| SCH 5s | 1/2" | 21.34 | 18.04 | 1.65 | 0.8165 | 67.04 | ||
| SCH 5s | 3/4" | 26.67 | 23.37 | 1.65 | 1.0376 | 83.79 | ||
| SCH 5s | 1" | 33.4 | 30.1 | 1.65 | 1.3166 | 104.93 | ||
| SCH 5s | 1.1/4" | 42.16 | 38.86 | 1.65 | 1.6799 | 132.45 | ||
| SCH 5s | 1.1/2" | 48.26 | 44.96 | 1.65 | 1.9329 | 151.61 | ||
| SCH 5s | 2" | 60.33 | 57.03 | 1.65 | 2.4334 | 189.53 | ||
| SCH 5s | 2.1/2" | 73.03 | 68.81 | 2.11 | 3.7609 | 229.43 | ||
| SCH 5s | 3" | 88.9 | 84.68 | 2.11 | 4.6025 | 279.29 | ||
| SCH 5s | 3.1/2" | 101.6 | 97.38 | 2.11 | 5.2760 | 319.19 | ||
| SCH 5s | 4" | 114.3 | 110.08 | 2.11 | 5.9495 | 359.08 | ||
| SCH 5s | 5" | 141.3 | 135.76 | 2.77 | 9.6442 | 443.91 | ||
| SCH 5s | 6" | 168.28 | 162.74 | 2.77 | 11.5225 | 528.67 | ||
| SCH 5s | 8" | 219.08 | 213.54 | 2.77 | 15.0590 | 688.26 | ||
| SCH 5s | 10" | 273.05 | 266.25 | 3.4 | 23.0420 | 857.81 | ||
| SCH 5s | 12" | 323.85 | 315.93 | 3.96 | 31.8373 | 1017.40 | ||
| SCH 5s | 14" | 355.6 | 347.68 | 3.96 | 34.9973 | 1117.15 | ||
| SCH 5s | 16" | 406.4 | 398 | 4.2 | 42.4553 | 1276.74 | ||
| SCH 5s | 18" | 457.2 | 448.8 | 4.2 | 47.8177 | 1436.34 | ||
| SCH 5s | 20" | 508 | 498.44 | 4.78 | 60.4542 | 1595.93 | ||
| SCH 5s | 22" | 558.8 | 549.24 | 4.78 | 66.5571 | 1755.52 | ||
| SCH 5s | 24" | 609.6 | 598.52 | 5.54 | 84.1067 | 1915.11 | ||
| SCH 10s | 1/8" | 10.29 | 7.81 | 1.24 | 0.2820 | 32.33 | ||
| SCH 10s | 1/4" | 13.72 | 10.42 | 1.65 | 0.5005 | 43.10 | ||
| SCH 10s | 3/8" | 17.15 | 13.85 | 1.65 | 0.6428 | 53.88 | ||
| SCH 10s | 1/2" | 21.34 | 17.12 | 2.11 | 1.0198 | 67.04 | ||
| SCH 10s | 3/4" | 26.67 | 22.45 | 2.11 | 1.3024 | 83.79 | ||
| SCH 10s | 1" | 33.4 | 27.86 | 2.77 | 2.1324 | 104.93 | ||
| SCH 10s | 1.1/4" | 42.16 | 36.62 | 2.77 | 2.7422 | 132.45 | ||
| SCH 10s | 1.1/2" | 48.26 | 42.72 | 2.77 | 3.1669 | 151.61 | ||
| SCH 10s | 2" | 60.33 | 54.79 | 2.77 | 4.0072 | 189.53 | ||
| SCH 10s | 2.1/2" | 73.03 | 66.93 | 3.05 | 5.3643 | 229.43 | ||
| SCH 10s | 3" | 88.9 | 82.8 | 3.05 | 6.5808 | 279.29 | ||
| SCH 10s | 3.1/2" | 101.6 | 95.5 | 3.05 | 7.5544 | 319.19 | ||
| SCH 10s | 4" | 114.3 | 108.2 | 3.05 | 8.5279 | 359.08 | ||
| SCH 10s | 5" | 141.3 | 134.5 | 3.4 | 11.7838 | 443.91 | ||
| SCH 10s | 6" | 168.28 | 161.48 | 3.4 | 14.0892 | 528.67 | ||
| SCH 10s | 8" | 219.08 | 211.56 | 3.76 | 20.3476 | 688.26 | ||
| SCH 10s | 10" | 273.05 | 264.67 | 4.19 | 28.3127 | 857.81 | ||
| SCH 10s | 12" | 323.85 | 314.71 | 4.57 | 36.6715 | 1017.40 | ||
| SCH 10s | 14" | 355.6 | 346.04 | 4.78 | 42.1457 | 1117.15 | ||
| SCH 10s | 16" | 406.4 | 396.84 | 4.78 | 48.2485 | 1276.74 | ||
| SCH 10s | 18" | 457.2 | 447.7 | 4.75 | 54.0138 | 1436.34 | ||
| SCH 10s | 20" | 508 | 496.92 | 5.54 | 69.9604 | 1595.93 | ||
| SCH 10s | 22" | 558.8 | 547.72 | 5.54 | 77.0336 | 1755.52 | ||
| SCH 10s | 24" | 609.6 | 596.9 | 6.35 | 96.2746 | 1915.11 | ||
| SCH 40 | 1/8" | 10.29 | 6.83 | 1.73 | 0.3722 | 32.33 | ||
| SCH 40 | 1/4" | 13.72 | 9.24 | 2.24 | 0.6463 | 43.10 | ||
| SCH 40 | 3/8" | 17.15 | 12.53 | 2.31 | 0.8616 | 53.88 | ||
| SCH 40 | 1/2" | 21.34 | 15.8 | 2.77 | 1.2928 | 67.04 | ||
| SCH 40 | 3/4" | 26.67 | 20.93 | 2.87 | 1.7167 | 83.79 | ||
| SCH 40 | 1" | 33.4 | 26.64 | 3.38 | 2.5502 | 104.93 | ||
| SCH 40 | 1.1/4" | 42.16 | 35.04 | 3.56 | 3.4536 | 132.45 | ||
| SCH 40 | 1.1/2" | 48.26 | 40.9 | 3.68 | 4.1231 | 151.61 | ||
| SCH 40 | 2" | 60.33 | 52.51 | 3.91 | 5.5444 | 189.53 | ||
| SCH 40 | 2.1/2" | 73.03 | 62.71 | 5.16 | 8.8017 | 229.43 | ||
| SCH 40 | 3" | 88.9 | 77.92 | 5.49 | 11.5088 | 279.29 | ||
| SCH 40 | 3.1/2" | 101.6 | 90.12 | 5.74 | 13.8290 | 319.19 | ||
| SCH 40 | 4" | 114.3 | 102.26 | 6.02 | 16.3827 | 359.08 | ||
| SCH 40 | 5" | 141.3 | 128.2 | 6.55 | 22.1825 | 443.91 | ||
| SCH 40 | 6" | 168.28 | 154.06 | 7.11 | 28.8001 | 528.67 | ||
| SCH 40 | 8" | 219.08 | 202.72 | 8.18 | 43.3582 | 688.26 | ||
| SCH 40 | 10" | 273.05 | 254.51 | 9.27 | 61.4557 | 857.81 | ||
| SCH 40 | 12" | 323.85 | 304.79 | 9.53 | 75.2845 | 1017.40 | ||
| SCH 80S | 1/8" | 10.29 | 5.47 | 2.41 | 0.4773 | 32.33 | ||
| SCH 80S | 1/4" | 13.72 | 7.68 | 3.02 | 0.8121 | 43.10 | ||
| SCH 80S | 3/8" | 17.15 | 10.75 | 3.2 | 1.1219 | 53.88 | ||
| SCH 80S | 1/2" | 21.34 | 13.88 | 3.73 | 1.6509 | 67.04 | ||
| SCH 80S | 3/4" | 26.67 | 18.85 | 3.91 | 2.2366 | 83.79 | ||
| SCH 80S | 1" | 33.4 | 24.3 | 4.55 | 3.2991 | 104.93 | ||
| SCH 80S | 1.1/4" | 42.16 | 32.46 | 4.85 | 4.5479 | 132.45 | ||
| SCH 80S | 1.1/2" | 48.26 | 38.1 | 5.08 | 5.5130 | 151.61 | ||
| SCH 80S | 2" | 60.33 | 49.25 | 5.54 | 7.6287 | 189.53 | ||
| SCH 80S | 2.1/2" | 73.03 | 59.01 | 7.01 | 11.6315 | 229.43 | ||
| SCH 80S | 3" | 88.9 | 73.66 | 7.62 | 15.5661 | 279.29 | ||
| SCH 80S | 3.1/2" | 101.6 | 85.44 | 8.08 | 18.9914 | 319.19 | ||
| SCH 80S | 4" | 114.3 | 97.18 | 8.56 | 22.7486 | 359.08 | ||
| SCH 80S | 5" | 141.3 | 122.24 | 9.53 | 31.5610 | 443.91 | ||
| SCH 80S | 6" | 168.28 | 146.34 | 10.97 | 43.3714 | 528.67 | ||
| SCH 80S | 8" | 219.08 | 193.68 | 12.7 | 65.8737 | 688.26 | ||
| SCH 80S | 10" | 273.05 | 247.65 | 12.7 | 83.1002 | 857.81 | ||
| SCH 80S | 12" | 323.85 | 298.45 | 12.7 | 99.3149 | 1017.40 | ||
| SCH 160S | 1/4" | 13.72 | 7.12 | 3.3 | 0.8642 | 43.10 | ||
| SCH 160S | 3/8" | 17.15 | 7.65 | 4.75 | 1.4803 | 53.88 | ||
| SCH 160S | 1/2" | 21.34 | 11.78 | 4.78 | 1.9894 | 67.04 | ||
| SCH 160S | 3/4" | 26.67 | 15.55 | 5.56 | 2.9499 | 83.79 | ||
| SCH 160S | 1" | 33.4 | 20.68 | 6.36 | 4.3222 | 104.93 | ||
| SCH 160S | 1.1/4" | 42.16 | 29.46 | 6.35 | 5.7150 | 132.45 | ||
| SCH 160S | 1.1/2" | 48.26 | 33.98 | 7.14 | 7.3789 | 151.61 | ||
| SCH 160S | 2" | 60.33 | 42.85 | 8.74 | 11.3323 | 189.53 | ||
| SCH 160S | 2.1/2" | 73.03 | 53.99 | 9.52 | 15.1957 | 229.43 | ||
| SCH 160S | 3" | 88.9 | 66.64 | 11.13 | 21.7545 | 279.29 | ||
| SCH 160S | 4" | 114.3 | 87.32 | 13.49 | 34.1788 | 359.08 | ||
| SCH 160S | 5" | 141.3 | 109.54 | 15.88 | 50.0562 | 443.91 | ||
| SCH 160S | 6" | 168.28 | 131.76 | 18.26 | 68.8479 | 528.67 | ||
| SCH 160S | 8" | 219.08 | 173.06 | 23.01 | 113.3884 | 688.26 | ||
| SCH 160S | 10" | 273.05 | 215.91 | 28.57 | 175.5474 | 857.81 | ||
| SCH 160S | 12" | 323.85 | 257.21 | 33.32 | 243.2971 | 1017.40 | ||
| SCHXXS | 1/2" | 21.34 | 6.4 | 7.47 | 2.6040 | 67.04 | ||
| SCHXXS | 3/4" | 26.67 | 11.03 | 7.82 | 3.7048 | 83.79 | ||
| SCHXXS | 1" | 33.4 | 15.22 | 9.09 | 5.5538 | 104.93 | ||
| SCHXXS | 1.1/4" | 42.16 | 22.76 | 9.7 | 7.9134 | 132.45 | ||
| SCHXXS | 1.1/2" | 48.26 | 27.94 | 10.16 | 9.7288 | 151.61 | ||
| SCHXXS | 2" | 60.33 | 38.19 | 11.07 | 13.7051 | 189.53 | ||
| SCHXXS | 2.1/2" | 73.03 | 44.99 | 14.02 | 20.7929 | 229.43 | ||
| SCHXXS | 3" | 88.9 | 58.42 | 15.24 | 28.2135 | 279.29 | ||
| SCHXXS | 3.1/2" | 101.6 | 69.3 | 16.15 | 34.6837 | 319.19 | ||
| SCHXXS | 4" | 114.3 | 80.06 | 17.12 | 41.8140 | 359.08 | ||
| SCHXXS | 5" | 141.3 | 103.2 | 19.05 | 58.5308 | 443.91 | ||
| SCHXXS | 6" | 168.28 | 124.38 | 21.95 | 80.7251 | 528.67 | ||
| SCHXXS | 8" | 219.08 | 174.62 | 22.23 | 109.9805 | 688.26 | ||
| SCHXXS | 10" | 273.05 | 222.25 | 25.4 | 158.0931 | 857.81 | ||
| SCHXXS | 12" | 323.85 | 273.05 | 25.4 | 190.5225 | 1017.40 |
